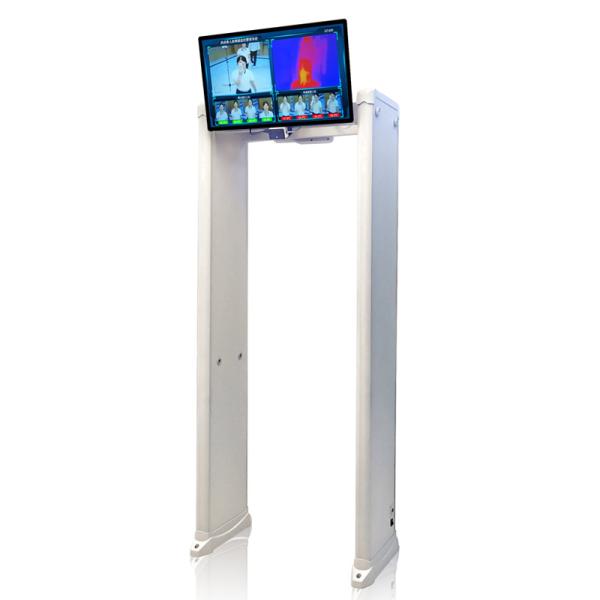

Door Fram Thermal Temperature Measuring Walk Through Metal Detector With 32 Inch Screen

Name: Door Fram Thermal Temperature Measuring Walk Through Metal Detector With 32 Inch Screen
Brand: customization
Price: 1280 USD

Quality Door Fram Thermal Temperature Measuring Walk Through Metal Detector With 32 Inch Screen for sale

Brand Name : customization

Model Number : MT-0001

Certification : CE ROHS FCC

Place of Origin : China

MOQ : 1

Price : USD1280

Payment Terms : T/T

Supply Ability : 500

Delivery Time : 5-8 days

Packaging Details : Packaging size: 82CM*19CM*57CM

Color : Gray

Temperatuer : -20℃～55℃

Material : PVC

Detector : All kinds of metal

Sensitive Level : 400 levels

Frenquency : 1-100

Temperature Accuracy : ±0.3℃

Camera Waterproof : IP65

Contact Now

Thermal temperature measuring walk through metal detector with 32 inch screen

Door Fram Thermal Temperature Measuring Walk Through Metal Detector With 32 Inch Screen

Selling Points:

1. 32 In big display

2. 12 zones detection

3. Support thermal imaging temperatrue measurement

4. Support walk through metal detector

5. Dual Camera.

6. Measurement Distance:1-5M

7. 2 million pixels

Door Fram Thermal Temperature Measuring Walk Through Metal Detector With 32 Inch Screen

Model Spec
Model Spec		Dual Thermal& Optical Image Cameras
Thermal module spec	Thermal sensor	VOx Uncooled Focal Plane Arrays
	resolution	256x192,Pixel size 12μm
	lens	Focal length: 6mm, field of view: 35° (horizontal)
	accuracy	±0.3℃, temperature range 35℃~38℃
	distance	1m-5m
	Black body	Support
Optical module spec	Image sensor	1/2.8” 2.0M Pixel Progressive Scan CMOS
	Min illumination	0.005Lux@F1.2(color), 0.001Lux@F1.2(B/W)
	WDR	≥80dB
		≥46dB(AGC OFF)
	Focal length	4mm
	Field of view	84°*45°(H x V)
AI	Face snapshot	Build-in deep learning AI algorithm, support simultaneous detection of 20-30 faces,Face detection, exposure, scoring, filter, snapshot upload
AI	Abnormal alarm	Abnormal temperature alarm (The default threshold is 37.3℃)
Network protocol		Support RTSP,RTP,TCP,UDP,UPNP,DHCP,PPPoE,ONVIF,GB/T 28181
Interface	HDMI output	1ch
	SD card slot	Support
	RS485	Support
	Power	DC power interface
	Network	1ch 10/100BaseT Ethernet, RJ45 interface
General	Temperature	-20℃～55℃
	Humidity	0%-90% RH(No condensation)
	Waterproof	IP65
	Power	12V DC
	consumption	≤5W(excluding heating)
	Dimension	80mm42mm49mm
	Weight	＜1kg

Features:

High sensitivity thermal module with 256x192 resolution.
Pixel size 12μm, NETD≤60mK(@25℃,F#=1.0)
Non-contact temperature measure, accuracy is ±0.3℃(temperature range from 30℃~50℃)
Multi-person measurements up to 1m-5m
Embedded 2MP HD Optical module
Embedded AI algorithm for 20 people temperature measurements simultaneous
Max output frame rate:
Optical image: 1920x1080@25fps

Thermal image: 256x192@25fps

HDMI direct output preview video, real-time display of the number and temperature of passers-by
Support SD card storage, Data can be exported
Small and smart, can be used in security door and advertising machines

Application scenarios:

It can be widely installed in security doors or advertising machines and other machines for body temperature measurement.

Packaging Size:

Walk through metal detector :

Carton box: 2270*700*230cm
G.W:48KG
Volume:0.37m³

Thermal Camera With 32 Inch Screen
Carton box : 82CM*19CM*57cm
G.W: 8.5KG
Volume:0.09m³

Delivery Time:

5-8 Days

Door Fram Thermal Temperature Measuring Walk Through Metal Detector With 32 Inch Screen Images
